Beskrivning

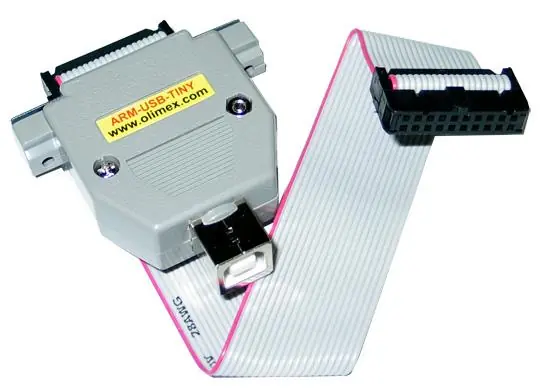

Debug all ARM microcontrollers supported by OpenOCD
High speed USB 2.0 with lower lattency time, RTCK adaptive JTAG clock up to 30Mhz and higher throughput achieve x3-x5 times faster programming speed than ARM-USB-TINY, can be used with all ARM devices for programming and debugging.
Uses ARM’s standard 2×10 pin JTAG connector
supports ARM targets working in voltage range 2.0 – 5.0 V DC
software supported by OpenOCD (open source) debugger
comes with CD with Windows installer for full featured and open source tools as alternative to the commercial ARM
development packages: GCC C compiler, openOCD debugger and Eclipse IDE.
works with IAR EW-ARM 5.50 or newer
dimensions 50×40 mm (2×1.6″) + 20 cm (8″) JTAG cable
FAQ:
Q: Can I use ARM-USB-TINY-H with EW-ARM?
A: IAR have for GDB and works with ARm-USB-TINY-H.
Q: I use Windows XP x64, how I can update the USB drivers?
A: FTDI have x64 drivers on their web, download them and use our ARM-USB-TINY PID: 0x0004, VID: 0x15BA to install the drivers.
Q: how to install ARM-USB-TINY-H to work with CrossWorks:
Use: ”Generic FTD2232” target interface
1. Right click on a blank space in the targets window and select ”New Target Interface > Generic FT2232 Device”.
2. Right click on the new target interface and select ”Properties” – set the following properties:
Connected LED Inversion Mask 0x0000
Connected LED Mask = 0x0800
nSRST Inversion Mask = 0x0200
nSRST Mask = 0x0200
nTRST Inversion Mask = 0x0000
nTRST Mask = 0x0100
Output Pins = 0x0F1B
Output Value = 0x0D08
Running LED Inversion Mask = 0x0000
Running LED Mask = 0x0800
It is recommended to use LibUSB drivers instead of FTDI
PID: 0x002A
VID: 0x15BA
Q: Can I debug high voltage targets with ARM-USB-TINY-H?
A: ARM-USB-TINY-H is not isolated, but you can use USB-ISO isolator device to protect your PC while debugging high voltage targets.
