Beskrivning

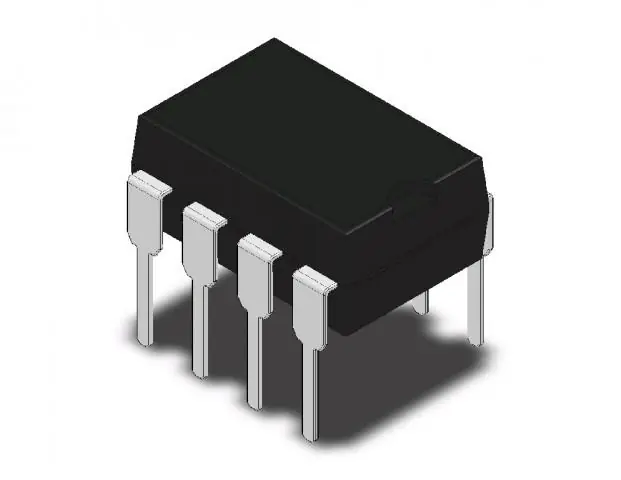

Digital potentiometer, 1st 100kohm. 8-bitars upplösning ger 256 diskreta steg. Styrs via SPI.
* 256 taps for each potentiometer
* SPI serial interface (mode 0,0 and 1,1)
* ±1 LSB max INL & DNL
* Low power CMOS technology
* 1 µA maximum supply current in static operation
* Shutdown feature open circuits of all resistors for maximum power savings
* Single supply operation (2.7V – 5.5V)
* Industrial temperature range: -40°C to +85°C
