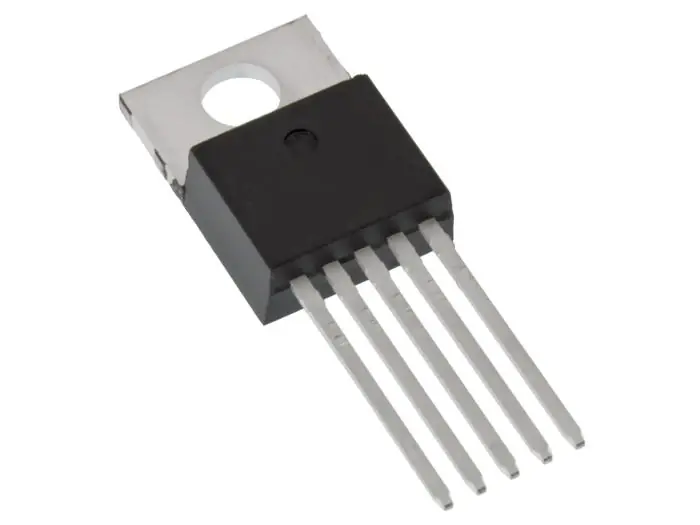

The IXDD614 high-speed gate driver is especially well suited for driving the latest IXYS MOSFETs and IGBTs. Each output can source and sink 14A of peak current while producing voltage rise and fall times of less than 30ns. Internal circuitry eliminates cross-conduction and current ”shoot-through,” making the driver virtually immune to latch up. Low propagation delay with fast rise and fall times make the IXD_614 family ideal for high-frequency and high-power applications.
Features:
* 14A Peak Source/Sink Drive Current
* Wide Operating Voltage Range: 4.5V to 35V
* -40°C to +125°C Extended Operating Temperature Range
* Logic Input Withstands Negative Swing of up to 5V
* Low Propagation Delay Time
* Low, 10µA Supply Current
* Low Output Impedance
Applications:
* Efficient Power MOSFET and IGBT Switching
* Switch Mode Power Supplies
* Motor Controls
* DC to DC Converters
* Class-D Switching Amplifiers
* Pulse Transformer Driver
