Low-Noise Operational Amplifiers

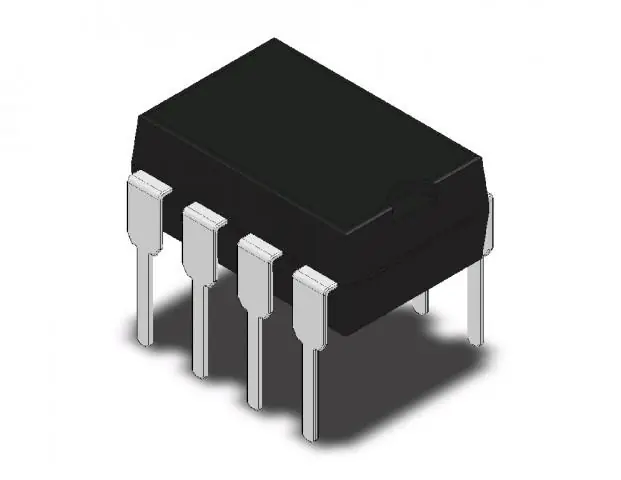

The NE5534 is a high-performance operational amplifier combining excellent dc and ac
characteristics. Some of the features include very low noise, high output drive capability, high unity-gain and
maximum-output-swing bandwidths, low distortion, and high slew rate.
This operational amplifier is internally compensated for a gain equal to or greater than three. Optimization
of the frequency response for various applications can be obtained by use of an external compensation
capacitor between COMP and COMP/BAL. The devices feature input-protection diodes, output short-circuit
protection, and offset-voltage nulling capability.
Features
* Equivalent Input Noise Voltage: 3.5nV/vHz
* Unity-Gain Bandwidth: 10MHz Typ
* Common-Mode Rejection Ratio: 100dB Typ
* High DC Voltage Gain: 100V/mV Typ
* Peak-to-Peak Output Voltage Swing: 32V Typ With VCC+/- = +/-18 V and Rload = 600ohm
* High Slew Rate: 13V/us Typ
* Wide Supply Voltage Range +/-3V to +/-20V
* Low Harmonic Distortion
* Designed To Be Interchangeable With Signetics NE5534
