Beskrivning

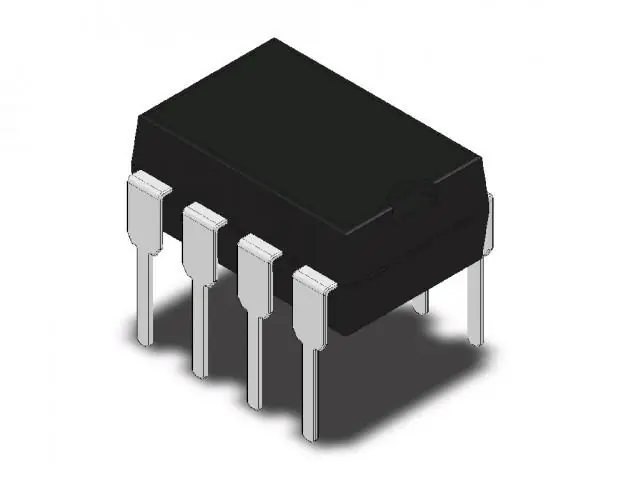

1.5A PEAK BOOST/BUCK/INVERTING SWITCHING REGULATOR
The MC34063A is an easy-to-use IC containing all the primary circuitry needed for building simple dc-dc converters. These device primarily consists of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the device requires minimal external components to build converters in the boost, buck, and inverting topologies.
Features
* Wide Input Voltage Range: 3V to 40V
* Precision Internal Reference: 2%
* High Output Switch Current: Up to 1.5A
* Short-Circuit Current Limiting
* Adjustable Output Voltage
* Low Standby Current
* Oscillator Frequency: Up to 100kHz
